如何实现微信支付-初见-

完成微信支付有两个关键的步骤：

第一个就是需要在商户系统当中调用微信后台的一个下单接口，就是生成预支付交易单。

第二个就是支付成功之后微信后台会给推送消息。

这两个接口数据的安全性，要求其实是非常高的。

解决：微信提供的方式就是对数据进行加密、解密、签名多种方式。要完成数据加密解密，需要提前准备相应的一些文件，其实就是一些证书。

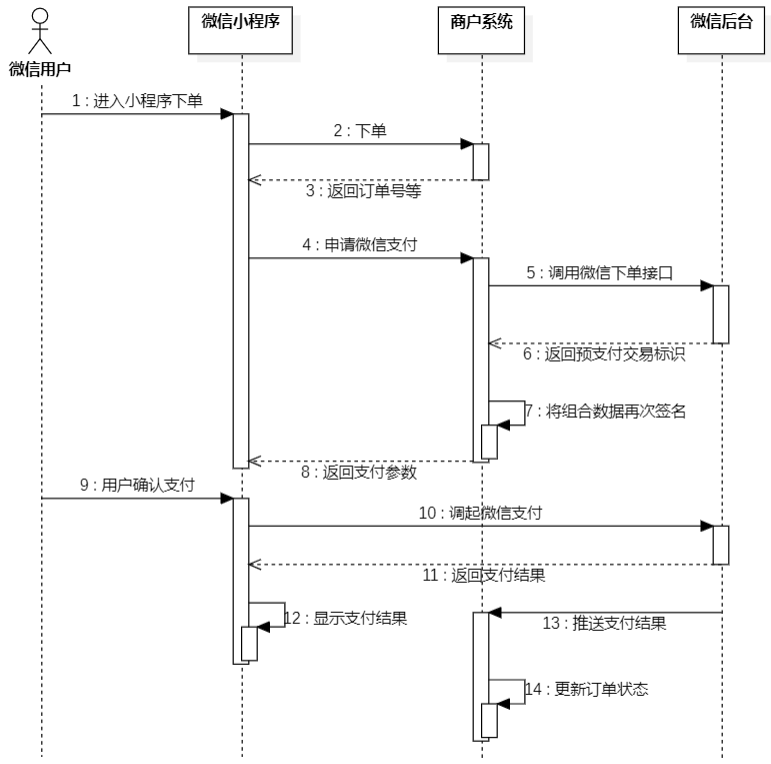

1. 主要的实现原理如下

2. 在微信商户中开通相应的功能

https://pay.weixin.qq.com/

3. 主要的过程

请求的url为:

https://api.mch.weixin.qq.com/v3/pay/transactions/jsapi

主要的yml的配置:

wechat:
    appid: wxcd2e39f677fd30ba
    secret: 84fbfdf5ea288f0c432d829599083637
    mchid : 1561414331
    mchSerialNo: 4B3B3DC35414AD50B1B755BAF8DE9CC7CF407606
    privateKeyFilePath: D:\apiclient_key.pem
    apiV3Key: CZBK51236435wxpay435434323FFDuv3
    weChatPayCertFilePath: D:\wechatpay_166D96F876F45C7D07CE98952A96EC980368ACFC.pem
    notifyUrl: https://www.weixin.qq.com/wxpay/pay.php
    refundNotifyUrl: https://www.weixin.qq.com/wxpay/pay.php

wechat:
    appid: ${sky.wechat.appid}
    secret: ${sky.wechat.secret}
    mchid : ${sky.wechat.mchid}
    mchSerialNo: ${sky.wechat.mchSerialNo}
    privateKeyFilePath: ${sky.wechat.privateKeyFilePath}
    apiV3Key: ${sky.wechat.apiV3Key}
    weChatPayCertFilePath: ${sky.wechat.weChatPayCertFilePath}
    notifyUrl: ${sky.wechat.notifyUrl}
    refundNotifyUrl: ${sky.wechat.refundNotifyUrl}

WeChatProperties:

private String appid; //小程序的appid
    private String secret; //小程序的秘钥
    private String mchid; //商户号
    private String mchSerialNo; //商户API证书的证书序列号
    private String privateKeyFilePath; //商户私钥文件
    private String apiV3Key; //证书解密的密钥
    private String weChatPayCertFilePath; //平台证书
    private String notifyUrl; //支付成功的回调地址
    private String refundNotifyUrl; //退款成功的回调地址

OrderMapper:

* 根据订单号和用户id查询订单
     * @param orderNumber
     * @param userId
     */
    @Select("select * from orders where number = #{orderNumber} and user_id= #{userId}")
    Orders getByNumberAndUserId(String orderNumber, Long userId);

    /**
     * 修改订单信息
     * @param orders
     */
    void update(Orders orders);

OrderMapper.xml:

<update id="update" parameterType="com.sky.entity.Orders">
        update orders
        <set>
            <if test="cancelReason != null and cancelReason!='' ">
                cancel_reason=#{cancelReason},
            </if>
            <if test="rejectionReason != null and rejectionReason!='' ">
                rejection_reason=#{rejectionReason},
            </if>
            <if test="cancelTime != null">
                cancel_time=#{cancelTime},
            </if>
            <if test="payStatus != null">
                pay_status=#{payStatus},
            </if>
            <if test="payMethod != null">
                pay_method=#{payMethod},
            </if>
            <if test="checkoutTime != null">
                checkout_time=#{checkoutTime},
            </if>
            <if test="status != null">
                status = #{status},
            </if>
            <if test="deliveryTime != null">
                delivery_time = #{deliveryTime}
            </if>
        </set>
        where id = #{id}
</update>

在OrderService.java中添加payment和paySuccess两个方法定义:

* 订单支付
     * @param ordersPaymentDTO
     * @return
     */
    OrderPaymentVO payment(OrdersPaymentDTO ordersPaymentDTO) throws Exception;

    /**
     * 支付成功，修改订单状态
     * @param outTradeNo
     */
    void paySuccess(String outTradeNo);

在OrderServiceImpl.java中实现payment和paySuccess两个方法:

@Autowired
    private UserMapper userMapper;
	@Autowired
    private WeChatPayUtil weChatPayUtil;
    /**
     * 订单支付
     *
     * @param ordersPaymentDTO
     * @return
     */
    public OrderPaymentVO payment(OrdersPaymentDTO ordersPaymentDTO) throws Exception {
        // 当前登录用户id
        Long userId = BaseContext.getCurrentId();
        User user = userMapper.getById(userId);

        //调用微信支付接口，生成预支付交易单
        JSONObject jsonObject = weChatPayUtil.pay(
                ordersPaymentDTO.getOrderNumber(), //商户订单号
                new BigDecimal(0.01), //支付金额，单位 元
                user.getOpenid() //微信用户的openid
        );

        if (jsonObject.getString("code") != null && jsonObject.getString("code").equals("ORDERPAID")) {
            throw new OrderBusinessException("该订单已支付");
        }

        OrderPaymentVO vo = jsonObject.toJavaObject(OrderPaymentVO.class);
        vo.setPackageStr(jsonObject.getString("package"));

        return vo;
    }

    /**
     * 支付成功，修改订单状态
     *
     * @param outTradeNo
     */
    public void paySuccess(String outTradeNo) {
        // 当前登录用户id
        Long userId = BaseContext.getCurrentId();

        // 根据订单号查询当前用户的订单
        Orders ordersDB = orderMapper.getByNumberAndUserId(outTradeNo, userId);

        // 根据订单id更新订单的状态、支付方式、支付状态、结账时间
        Orders orders = Orders.builder()
                .id(ordersDB.getId())
                .status(Orders.TO_BE_CONFIRMED)
                .payStatus(Orders.PAID)
                .checkoutTime(LocalDateTime.now())
                .build();

        orderMapper.update(orders);
    }

在OrderController.java中添加payment方法:

* 订单支付
     *
     * @param ordersPaymentDTO
     * @return
     */
    @PutMapping("/payment")
    @ApiOperation("订单支付")
    public Result<OrderPaymentVO> payment(@RequestBody OrdersPaymentDTO ordersPaymentDTO) throws Exception {
        log.info("订单支付：{}", ordersPaymentDTO);
        OrderPaymentVO orderPaymentVO = orderService.payment(ordersPaymentDTO);
        log.info("生成预支付交易单：{}", orderPaymentVO);
        return Result.success(orderPaymentVO);
    }

PayNotifyController.java:

@RequestMapping("/paySuccess")
    public void paySuccessNotify(HttpServletRequest request, HttpServletResponse response) throws Exception {
        //读取数据
        String body = readData(request);
        log.info("支付成功回调：{}", body);

        //数据解密
        String plainText = decryptData(body);
        log.info("解密后的文本：{}", plainText);

        JSONObject jsonObject = JSON.parseObject(plainText);
        String outTradeNo = jsonObject.getString("out_trade_no");//商户平台订单号
        String transactionId = jsonObject.getString("transaction_id");//微信支付交易号

        log.info("商户平台订单号：{}", outTradeNo);
        log.info("微信支付交易号：{}", transactionId);

        //业务处理，修改订单状态、来单提醒
        orderService.paySuccess(outTradeNo);

        //给微信响应
        responseToWeixin(response);
    }

    /**
     * 读取数据
     *
     * @param request
     * @return
     * @throws Exception
     */
    private String readData(HttpServletRequest request) throws Exception {
        BufferedReader reader = request.getReader();
        StringBuilder result = new StringBuilder();
        String line = null;
        while ((line = reader.readLine()) != null) {
            if (result.length() > 0) {
                result.append("\n");
            }
            result.append(line);
        }
        return result.toString();
    }

    /**
     * 数据解密
     *
     * @param body
     * @return
     * @throws Exception
     */
    private String decryptData(String body) throws Exception {
        JSONObject resultObject = JSON.parseObject(body);
        JSONObject resource = resultObject.getJSONObject("resource");
        String ciphertext = resource.getString("ciphertext");
        String nonce = resource.getString("nonce");
        String associatedData = resource.getString("associated_data");

        AesUtil aesUtil = new AesUtil(weChatProperties.getApiV3Key().getBytes(StandardCharsets.UTF_8));
        //密文解密
        String plainText = aesUtil.decryptToString(associatedData.getBytes(StandardCharsets.UTF_8),
                nonce.getBytes(StandardCharsets.UTF_8),
                ciphertext);

        return plainText;
    }

    /**
     * 给微信响应
     * @param response
     */
    private void responseToWeixin(HttpServletResponse response) throws Exception{
        response.setStatus(200);
        HashMap<Object, Object> map = new HashMap<>();
        map.put("code", "SUCCESS");
        map.put("message", "SUCCESS");
        response.setHeader("Content-type", ContentType.APPLICATION_JSON.toString());
        response.getOutputStream().write(JSONUtils.toJSONString(map).getBytes(StandardCharsets.UTF_8));
        response.flushBuffer();
    }

需要的代码为:
